The product has passed the EU CE certification, China Green Building Materials Product Certification, and Beijing certification Research Institute for Root Puncture Resistance Testing "; The product has passed the 10000h artificial climate accelerated aging test; We have a wide range of product types and are one of the few companies in China that can produce glass fiber reinforced (G) and glass fiber reinforced with fiber backing (GL) products; The low-temperature bending performance of Ouxi PVC products can achieve -35 ° C bending without brittle cracking, meeting the needs of use in cold regions.
PVC Waterproof Membranes Specification
Types
Polyester reinforced Type P
Fleece backing Type L
Homogeneous Type H
Glass fiber reinforced Type G
Glass fiber reinforced inner belt with fiber backing Type GL
Advantages
Strong puncture resistance, stable size, high tear resistance
High tensile strength, used with special adhesives, can improve the adhesion to the base layer
High elongation, relatively soft material, high plasticity, suitable for detailed nodes and lap processing
Add chopped glass fiber or glass fiber non-woven fabric to the coil to improve product dimensional stability
Add chopped glass fiber or glass fiber non-woven fabric to the coil, and use fabrics such as polyester non-woven fabric to composite on the lower surface of the coil.
Constrotion methods
Mechanical fixation
Full-adhesion method
Empty paving method / node processing
Empty paving method / node processing
Full-adhesion method
Coil Thickness （mm）
1.2、1.5、1.8、2.0
Coil width （m）
1.0、2.0
Coil length（m）
20m（Or customized according to customers）
If the above products are not satisfactory to you, you can contact us and provide design drawings. We will customize the processing according to your needs
What are the common application ranges of PVC membranes？
Scope of application: mainly used in exposed single-layer roof waterproofing projects can also be used in large venues, airports, basements, civil air defense projects, comprehensive pipe gallery, reservoir dams, landfill sites, subway tunnels, bridges, grain depots and other projects.
Hangzhou West Railway Station

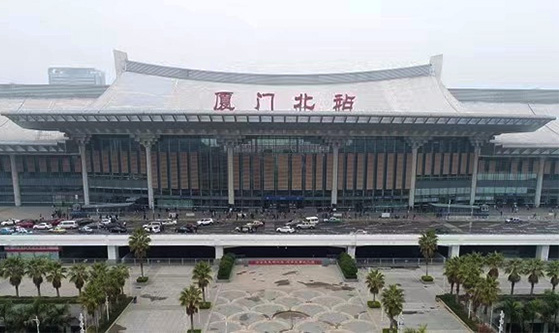

Xiamen North Railway Station

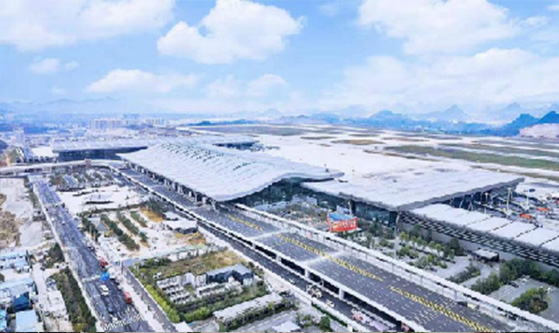

Guiyang Longdongbao Airport Phase III Expansion-T3 Terminal Metal Roof
Metal Roof Engineering of Zhengzhou Airport Station

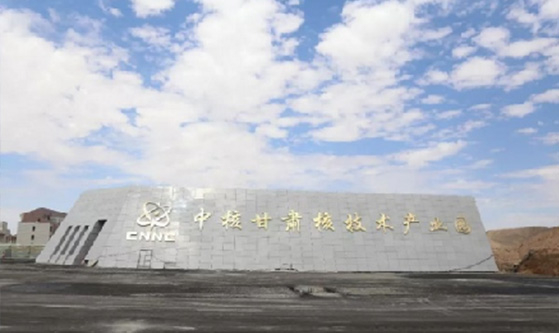

China Nuclear Gansu Nuclear Technology

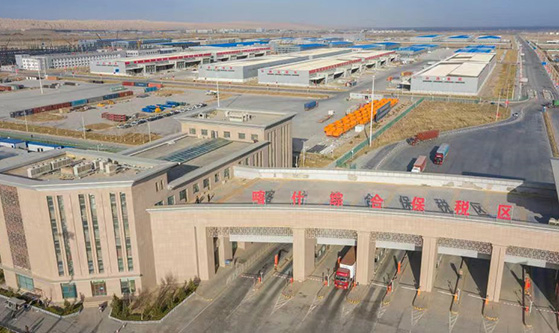

Xinjiang CO2, C05 Bonded Warehouse project
Construction Method
There are three construction methods for PVC waterproofing membrane:
mechanical fixation method, full adhesion method, and empty laying method. The seams are welded using hot air welding technology.
Mechanical fixation method construction process:
base surface cleaning → laying polyethylene film, laying insulation board → pre laying PVC waterproofing membrane → fixing fasteners → hot air welding → strengthening treatment of node parts → inspection and repair → organizing acceptance.
Construction process of full adhesion method:
base surface cleaning → positioning and marking → large-area adhesive coating → laying of rolls → overlapping of rolls → strengthening treatment of node parts → finishing treatment → organization and acceptance.
Construction process of empty laying method:
base surface cleaning → pre laying waterproofing membrane → hot air welding waterproofing membrane → strengthening treatment of node parts → inspection and repair → organization and acceptance.
CONTACT OSEAQUARD
If You Have Special Requirements, You Can Also Communicate with Us in Detail and We Can Customize Them According to Your Needs.
