TPS steel plastic tile

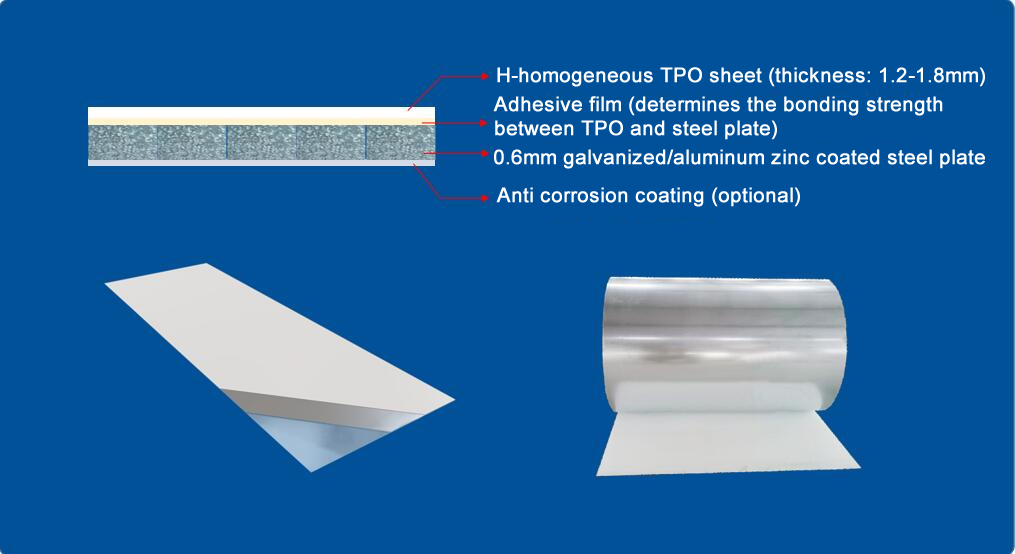

TPS steel plastic integrated tile is a prefabricated composite formed by hot pressing and bonding TPO waterproof membrane and aluminum zinc coated steel plate. The upper surface is a 1.2/1.5/1.8 mm thick TPO membrane waterproof layer, which protects the metal plate from exposure and water, and enhances the product's waterproof and anti-corrosion capabilities; The middle layer is made of aluminum zinc coated steel plate, and the lower surface is coated with anti-corrosion layer.

Production steps of TPS plastic steel tile products

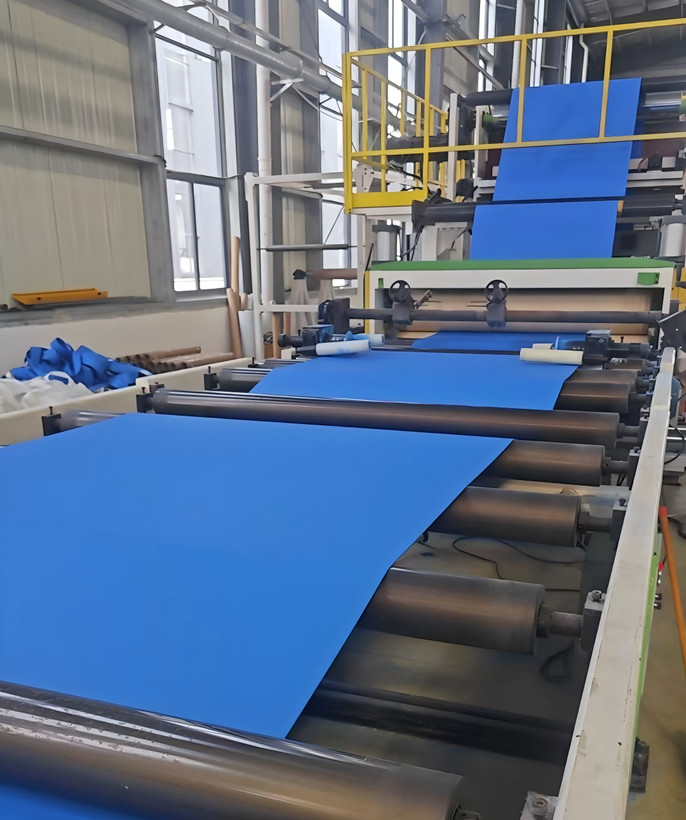

1. Preparation of rolls: Production of 1.5 \ 1.8 H-type TPO waterproof rolls

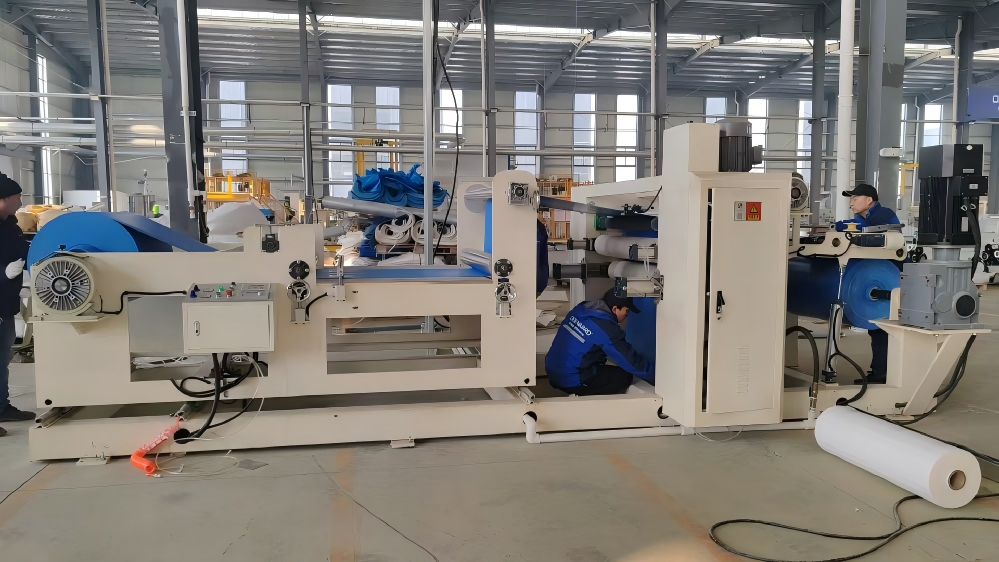

2. Roll film coating: TPO waterproof roll is bonded with hot melt adhesive

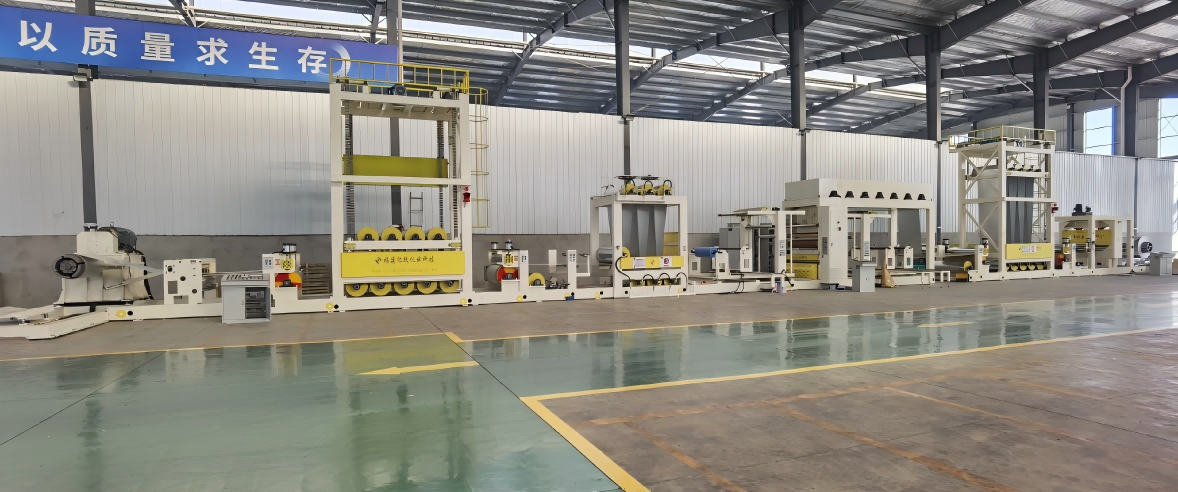

3. Steel plastic composite: Heat composite film roll with rigid plate

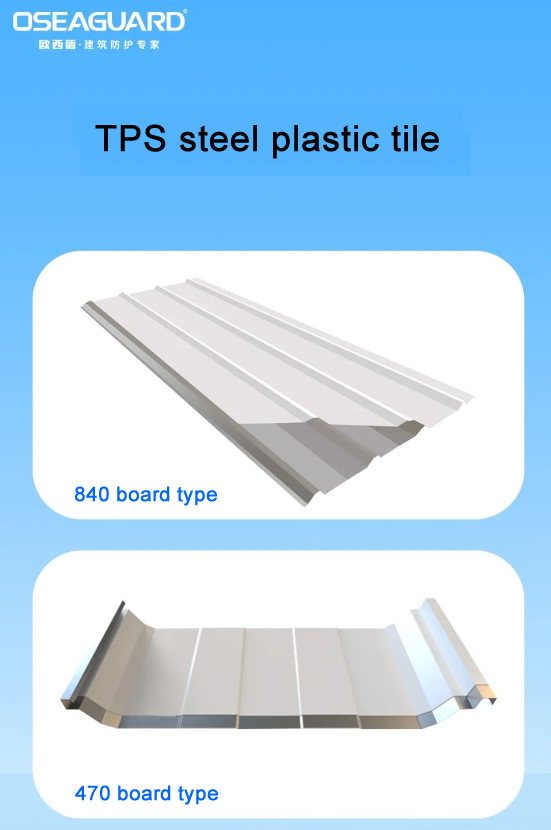

TPS Steel Plastic Tile - Introduction to Plate Types

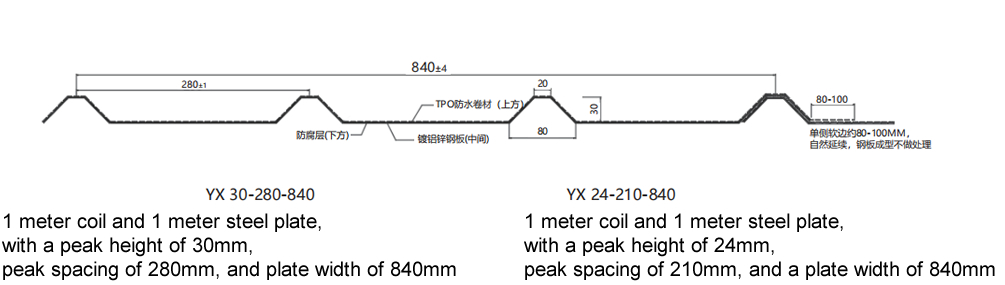

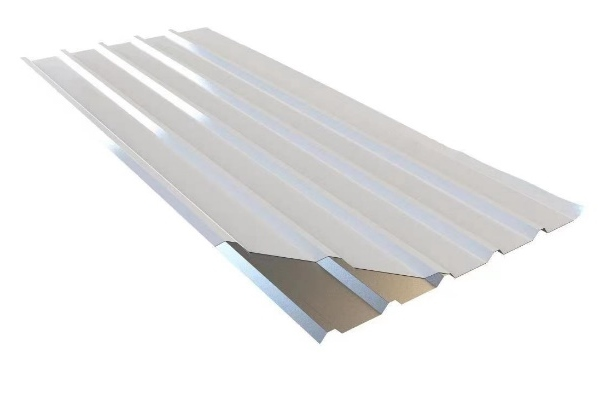

	840 plate TPS steel plastic tile

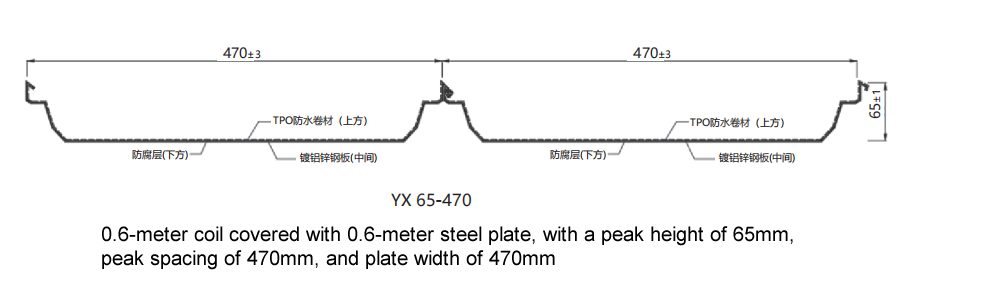

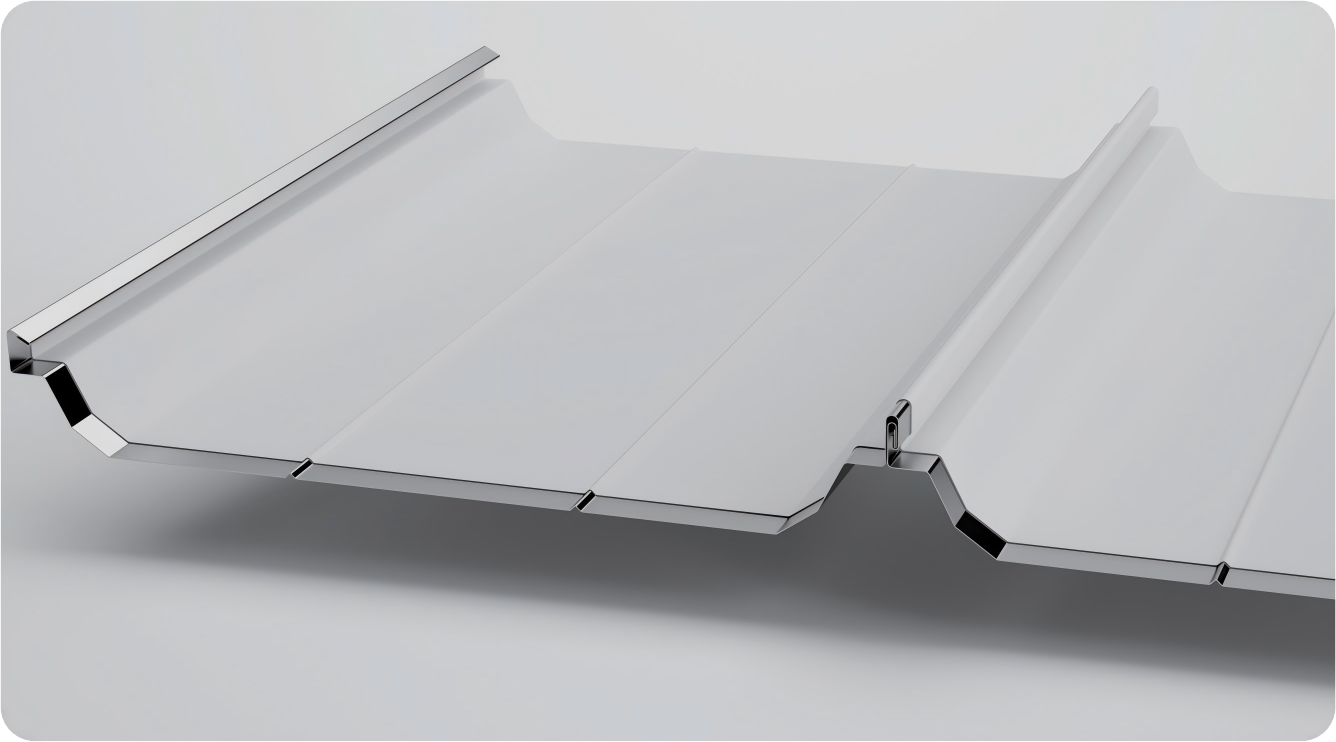

	470 plate TPS steel plastic tile

Our product advantages

1. The TPO waterproof layer is closely integrated with the aluminum zinc coated steel plate base, with a long waterproof service life. The TPO waterproof roll material covers the galvanized steel plate in all directions, extending the service life of the galvanized steel plate by more than 4 times, and can be exposed for 25 years;

2. Weathering and anti-corrosion, the surface TPO corrosion-resistant layer is dense and impermeable, with excellent corrosion resistance, which can avoid the increased cost of repairing and replacing roof and wall panels due to corrosion and leakage problems, as well as the losses caused by production stoppage;

3. Noise reduction, heat insulation, surface TPO white elastic material, with advantages such as energy saving, noise reduction, and heat insulation;

4. Flat and integrated, TPO waterproofing membrane is tightly covered on galvanized steel plate through special technology, with high bonding strength and a smooth and beautiful surface. Compared with the waterproofing construction of metal roofs, the composite stability and flatness far exceed the latter, basically eliminating all engineering quality hazards such as foreign objects, dust, hollowing, water bubbles, and wrinkles in the traditional waterproofing process, and ensuring the subsequent use effect of the sheet;

5. Reliable overlap, with reserved TPO coil overlap edges at the overlap, which can be treated with hot air welding to eliminate the risk of rigid overlap leakage;

6. Compared to traditional single-layer roofing systems, TPS steel plastic integrated tiles can effectively reduce the number of roof layers and material costs in terms of economy, environmental protection, and construction time; The structure has few levels, low requirements for weather environment, and can be used in maintenance projects, effectively reducing the construction period.

OSEA Guard steel plastic tile composite production line is one of the few in the waterproofing industry that has a complete set of composite steel plate lines including self-produced rolls, surface coatings, and steel plastic composites. We can cut and die cast the specified type of sheet according to your needs, or directly export the coil material for you to cut and die cast according to your own needs.
