The failure of TPO (thermoplastic polyolefin) roofs is usually the result of the combined effects of aging degradation of the material itself, defects during installation, and special environmental and usage conditions.
The following is a detailed analysis based on the latest research and practical cases.
This is the most common problem, as water usually infiltrates through these weak links.
Seam welding defect: TPO coil is welded using hot air. Poor welding (such as virtual welding, leakage welding) or dirt at the weld seam are the main reasons for premature opening and water leakage of the joint. The use of professional weld probes can effectively detect these defects.
Improper handling of detailed nodes: Roof edges (such as drip lines, parapet wall flashing), pipe roots, skylights, and other nodes are the weakest links in waterproofing. If these parts are not reinforced according to the specifications (such as laying additional layers or using prefabricated TPO node accessories), leakage is highly likely to occur.
This depends on the formula quality of the membrane material and the environment it is in.
Plasticizer precipitation and surface cracking: Early TPO formulations (around 2000) used unstable additives, and long-term exposure to sunlight and high temperatures can cause plasticizer precipitation, resulting in brittle film materials and micro cracks (cracking) on the surface. Although modern formulas have greatly improved, products with uneven quality still face this risk.
Surface erosion, exposing the substrate (fabric layer): Long term exposure to ultraviolet radiation and sandstorms will gradually thin the protective layer on the surface of the film material. Once the internal fabric reinforcement layer (scrim) is exposed, the waterproof function will fail.
Thermal aging and thermal oxidation: TPO is sensitive to extreme high temperatures. When the roof is exposed to high temperatures above 71 ° C (160 ° F) for various reasons (see below) for a long time, it will accelerate material aging, causing it to lose flexibility and crack.
This type of problem is usually related to design, construction, or external loads.
Wind induced failure: This is one of the most destructive failure modes. When the spacing between fixed components (fasteners, gaskets) is too large or the connection is not firm, strong wind uplift will generate a huge suction force on the membrane surface, causing the membrane material to be torn at the fixed component or the entire system to be lifted. A recent full-scale test shows that reducing the spacing between fasteners from 0.6 meters to 0.3 meters can significantly increase the wind resistance from 5.6kPa to 7.7kPa.
Adhesive failure (hollowing, arching): For fully bonded systems, the failure of the adhesive between the base layer and the membrane material can cause extensive bulging of the membrane material, which not only affects aesthetics but also becomes a stress concentration point under wind loads.
Internal pressure rise: A special but typical failure case is when indoor humid and hot air enters below the TPO membrane through gaps in the roof structure. In cold weather, this moisture condenses into ice; In strong wind conditions, the accumulation of pressure can cause severe "billowing" of the membrane surface, and in severe cases, even tearing.
In order to more scientifically evaluate the performance of aging TPO, Chinese OSEA Guard Company (a large roofing material manufacturer) conducted a field study. Due to the late entry of TPO waterproofing membranes into the Chinese waterproofing market, there have been no actual cases of TPO membranes being used for more than 20 years.

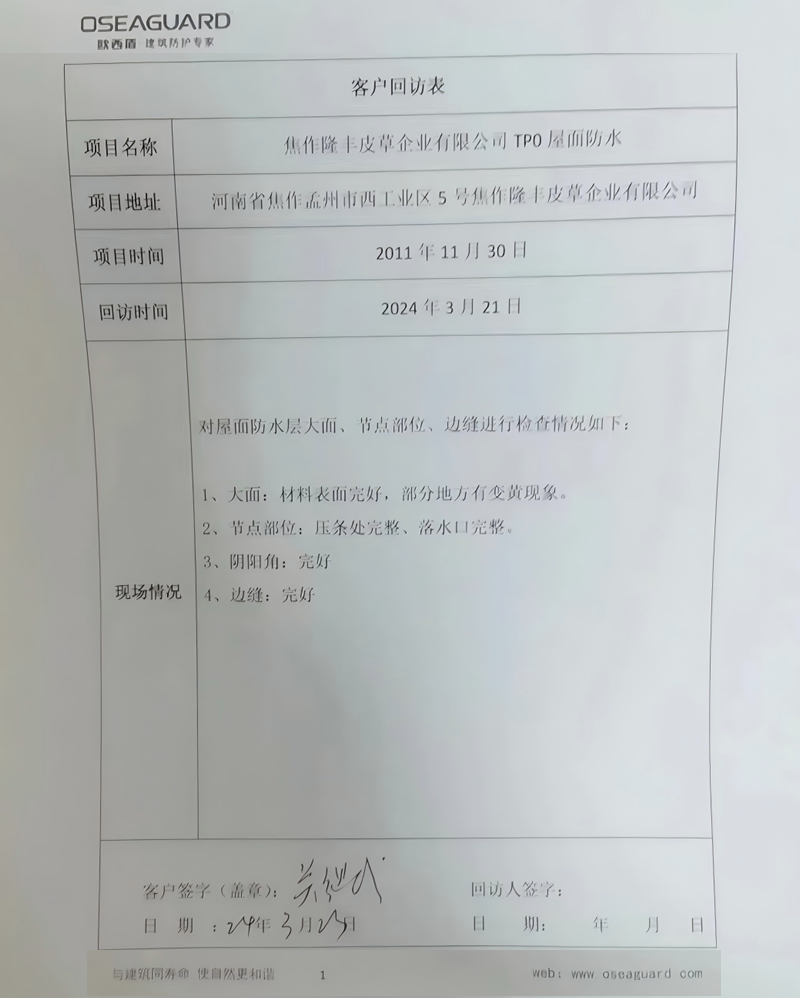

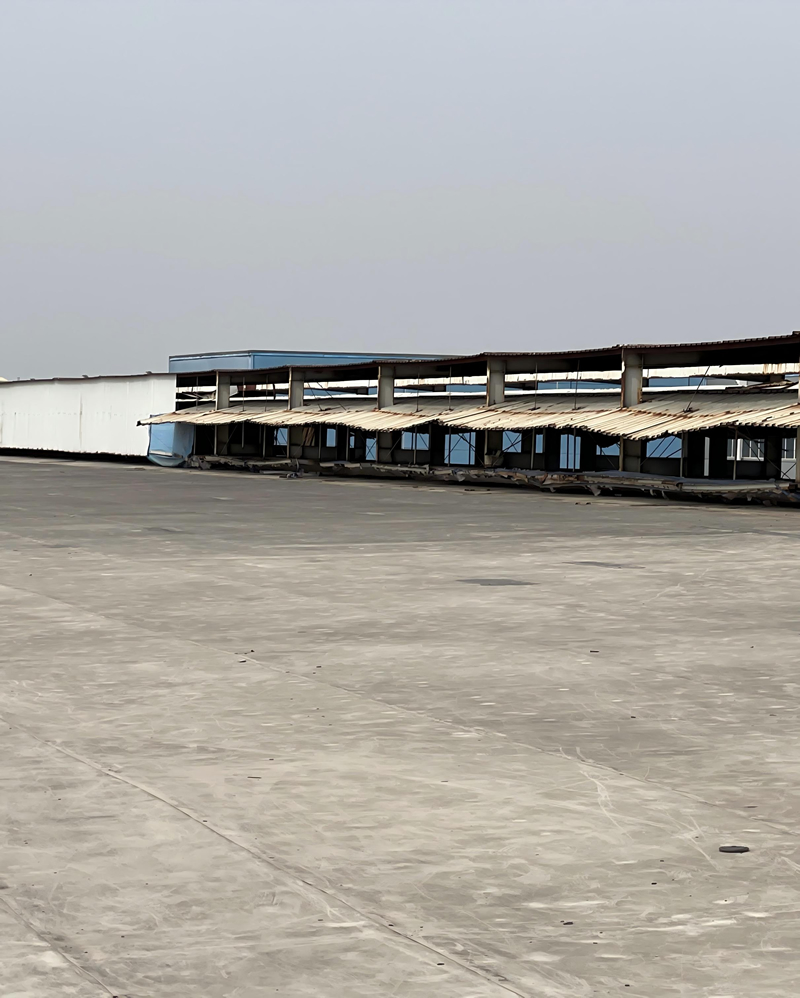

So, OSEA Guard conducted on-site follow-up inspections on Longfeng Fur Company, the company's earliest single-layer roof TPO project. The TPO roof of this project can be traced back to 2011 and has been in use for over 14 years, making it one of the earliest cases of domestically produced TPO rolls.

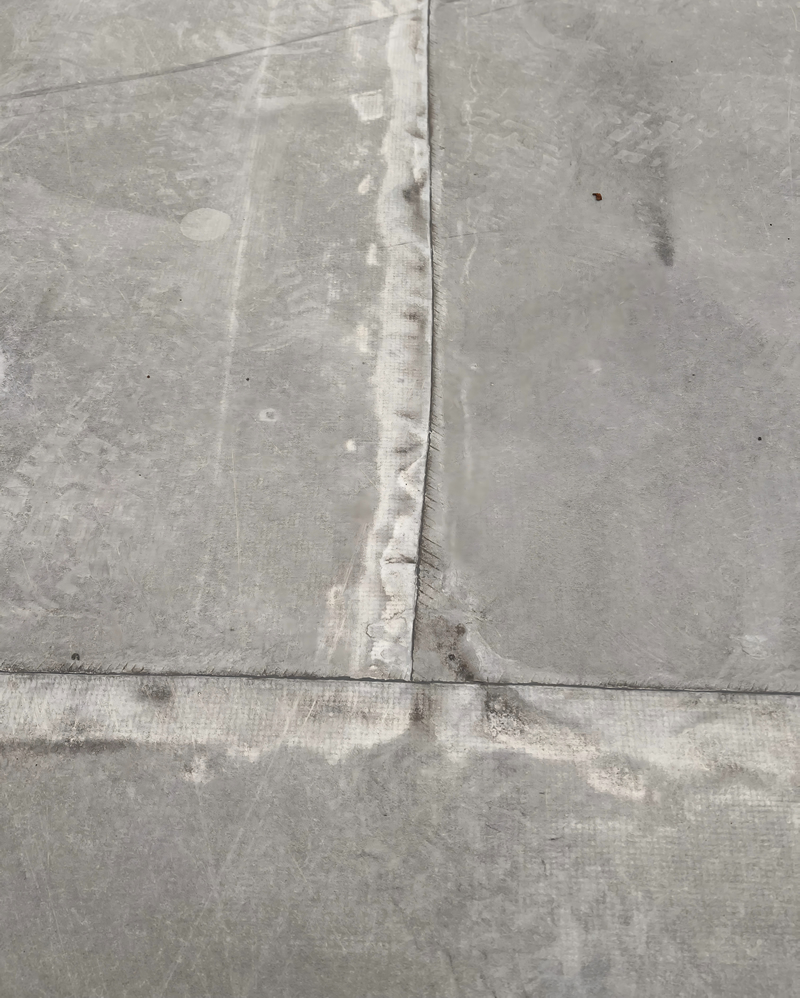

After the follow-up inspection, it was found that the TPO roof material is intact, with some parts turning yellow, the node pressure strip is intact, the drainage outlet is intact, and the internal and external corners and edge joints are intact. The customer is very satisfied with the overall waterproof effect.
The failure of TPO roofs is not a single cause, but a chain from materials, design, construction to environmental impact. To ensure the long-term reliability of the roof system, the following points are crucial:
Choose high-quality materials: prioritize TPO membrane materials that are 60mil (1.5mm) or thicker and comply with the latest ASTM D6878 standard, and confirm that their formula contains efficient antioxidants and UV stabilizers.
Emphasize professional installation: Ensure that joint welding, detailed nodes, and fastener fixation are carried out by certified professionals and strictly follow the manufacturer's construction specifications.
Pay attention to extreme heat environments: For areas where local high temperatures may occur on the roof (such as near equipment, under high reflective glass curtain walls, and under solar panel arrays), TPO products specifically designed for high temperature resistance should be selected.
Systematic design: The vapor barrier, insulation layer, waterproof layer, and roof equipment must be considered as a complete system, especially in buildings with high humidity environments (such as swimming pools), where the vapor barrier must be continuous and the indoor air pressure must be balanced.
